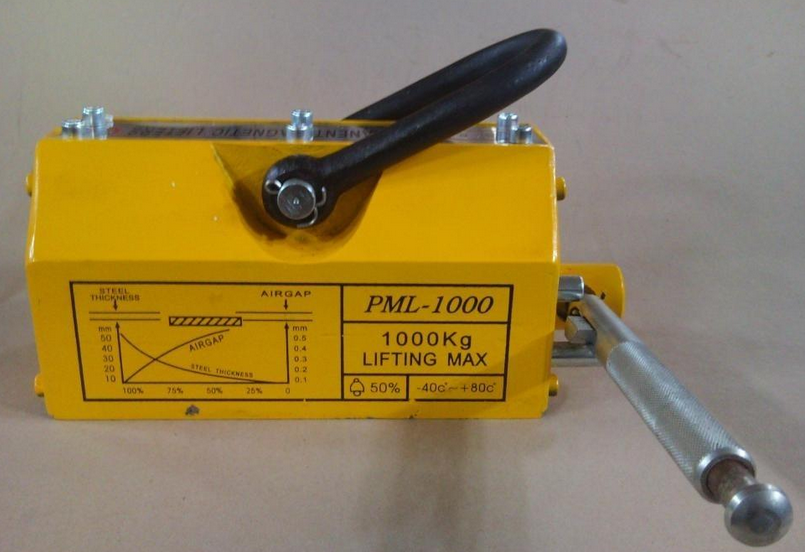

1. Widely used in machining and mould processing industry.
2. Using high-performance permanent magnetic materials, with strong magnetic force, unique circuit design , remanence almost zero.
3. High safety factor, maximal magnetic force is 3.5 times of rated lifting capacity.
4. Handle switches with safety button, easy for Single-hand operation, more safety and convenience.
5. ""V"" style design at the bottom of lifter, can lift round steel and steel plate.
6. Without electricity, magnetic force permanent, more safety in using, and can be operated in the field.

Model	Rated Lifting Capacity(KG)		Shape Size(mm)				Test Max Pull off Force (KG)	Weight (KG)
Model	Steel plate	Circle steel	L	B	H	R	Test Max Pull off Force (KG)	Weight (KG)
WL1-0.1	100	45	94	72	78	145	350	3.2
WL1 -0.2	200	90	146	72	81	145	750	5.4
WL1 -0.4	400	180	168	94	106	178	1250	11
Wl1 -0.6	600	270	218	116	116	225	2100	20
WLS1 -1	1000	450	272	145	145	295	3500	40
WL1 -1.5	1500	675	342	145	145	295	5000	48
WL1 -2	2000	900	388	160	170	365	6000	74
WL1 -3	3000	1350	460	185	185	425	9000	105
WL1 -5	5000	-	568	250	255	900	15000	248
WL1 -10	10000	-	586	567	308	1200	30000	750

Click download:3000kg permanent magnetic lifter ,3ton manual magnetic lifter
